SKU: T2281

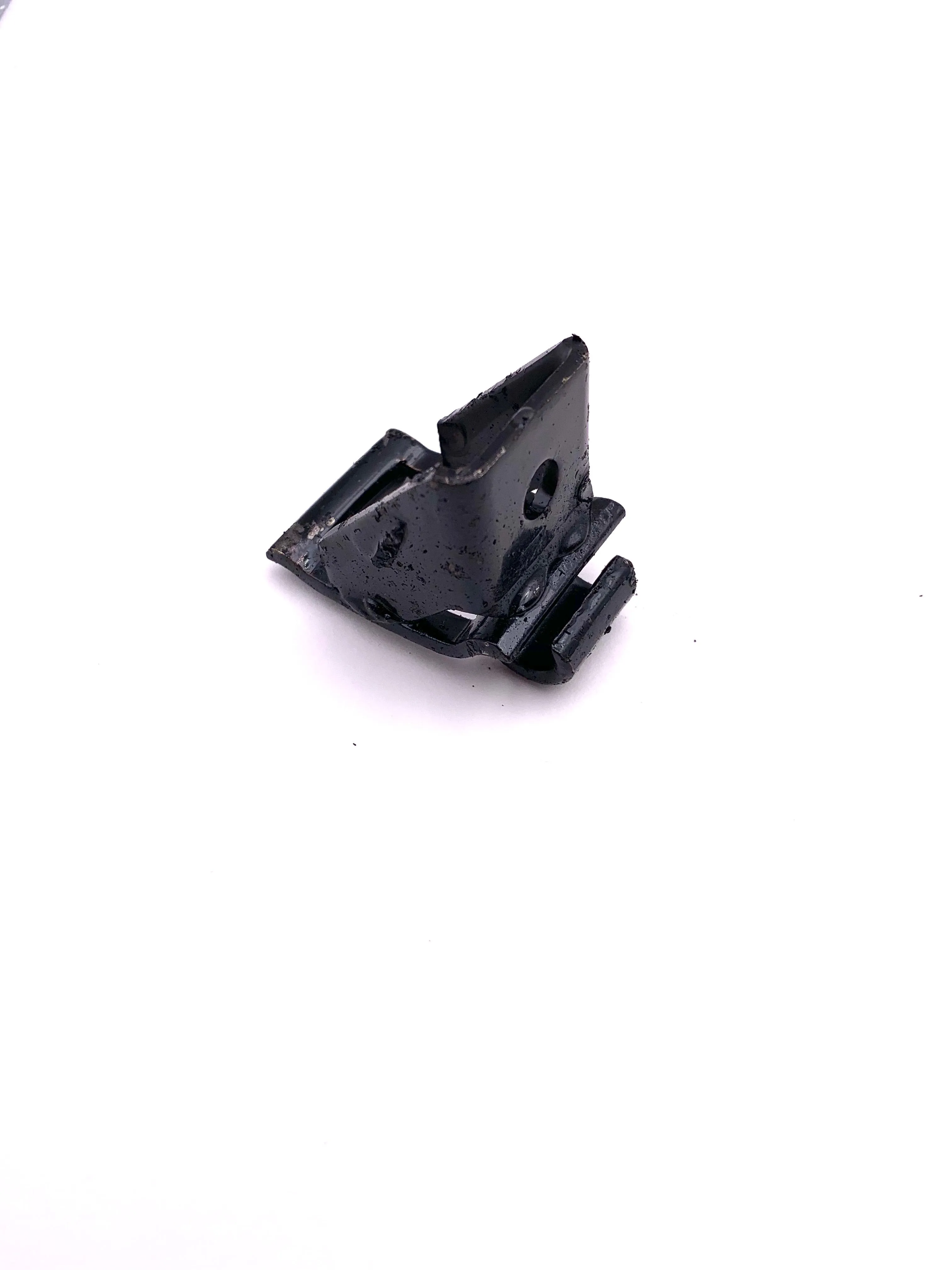

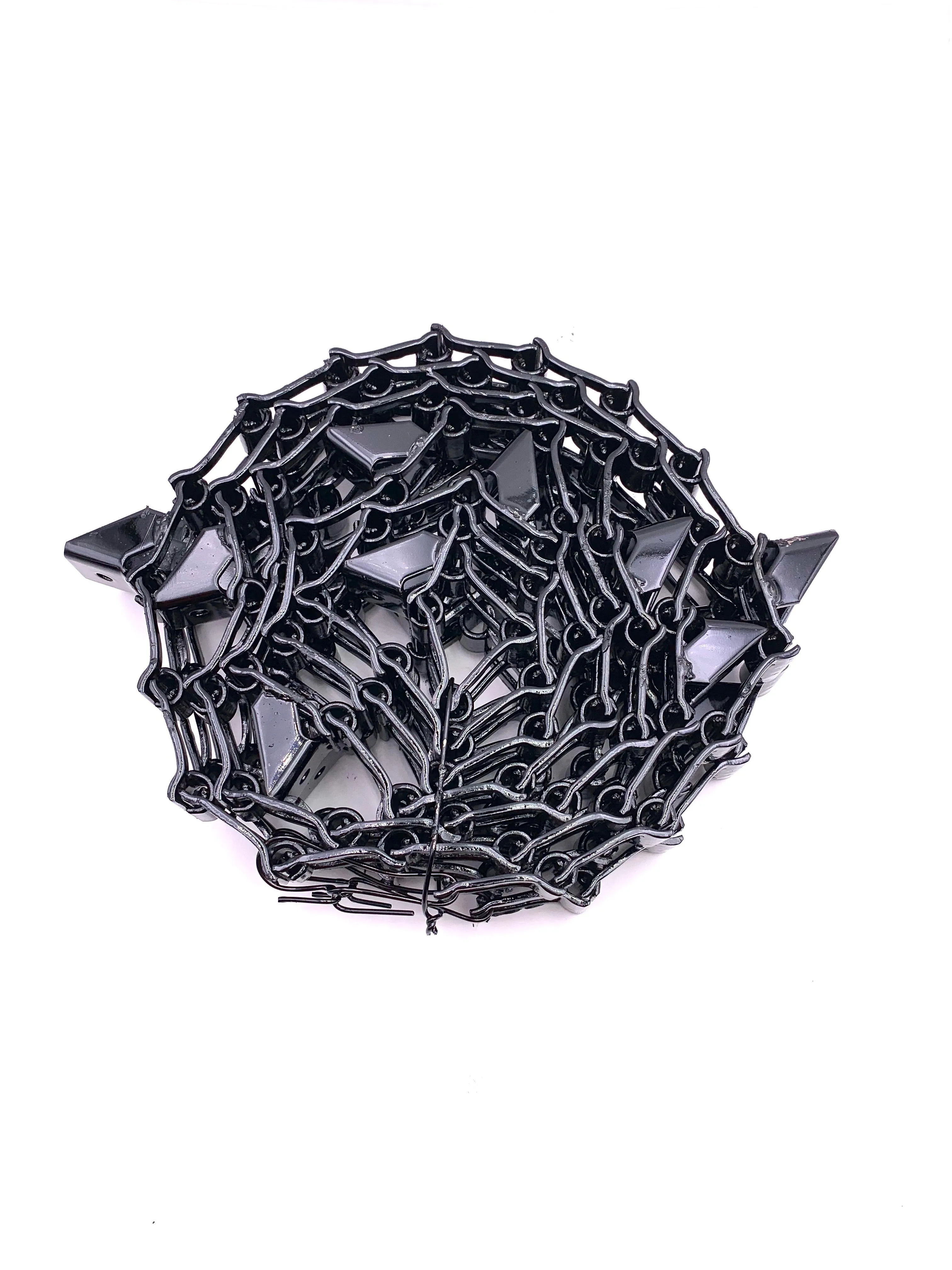

Our bale elevator chain is manufactured using a high-strength #62 steel detachable chain that has an C1 attachment every 13.23" (8th link) and is supplied as a 9.33ft pair (two strands of chain) that are matched and tagged for even elevation and load carrying. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The C1 attachments on this chain is designed with a moderate surface for welding or fastening slats onto them that will be used to elevate the hay bale. These chains are USA MADE ready to go. Contact us today at 800-648-5429. We are open 24/7 for you.
CHAIN DIMENSIONS
- Pitch (P): 1.654"
- Dimension (M): 1.563"
- Dimension (E): 1.002"
- Dimension (D): 0.984"
- Dimension (T): 0.148"
- Average Ultimate Strength: 4,200 LBS
- Chain Assembly Weight: 8.9 LBS
- Overall Length: 9.93FT
- Attachment Spacing: 13.23" (Every 8TH)
- Amount Of Attachments: 9
- Tolerance on Thickness: /- 0.007"
- Dimension (A): 1.438"
- Dimension (C): 1.281"
- Dimension (F): 0.469"
- Dimension (H): 1.781"
- Dimension (N): 0.266"
- Dimension (T): 0.105"
